E-Rickshaw Battery Charger Selection, Customization, and Use Guide

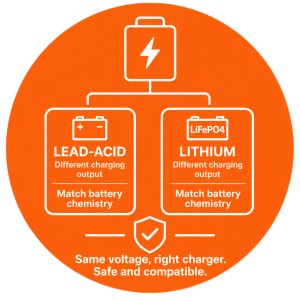

What Are the Main Differences Between a Lead-Acid E-Rickshaw Charger and a Lithium E-Rickshaw Charger?

Lead-acid and lithium batteries require different charging profiles and full-charge voltages. The 48V and 60V lead-acid models on this page use lead-acid charging profiles, provide 10.0 +/- 0.2A current, and have catalogue output ranges of DC 48-59.2V and DC 60-74V. The 48V and 72V lithium models provide 54.6 +/- 0.2V and 84.0 +/- 0.2V output for their corresponding battery configurations. A 48V lead-acid charger and a 48V lithium charger are not interchangeable simply because both batteries carry a 48V nominal label. The wrong profile can cause incomplete charging, BMS cut-off, excess heat, battery damage, or a safety risk. Battery chemistry, nominal voltage, full-charge voltage, capacity, and allowable current must all be confirmed before selection.

In Which Applications Are E-Rickshaw Battery Chargers Usually Used?

These chargers are commonly supplied for electric passenger tricycles, cargo E-rickshaws, urban and suburban transport fleets, vehicle assembly projects, battery replacement channels, and private-label distribution. The correct model depends on the battery system rather than the vehicle body alone. Manufacturers and importers should confirm the battery chemistry, required charging time, connector, local input voltage, operating environment, expected daily charging frequency, and fleet service conditions before placing a bulk order.

Does the E-Rickshaw Battery Charger Support Customization for Vehicle or Brand Requirements?

Yes. For vehicle, battery, or private-label projects, Linjia can customize charging current, charging logic, AC input, regional plug, output connector, cable, polarity, pin definition, housing, label, logo, product code, and packaging. New circuit solutions, structural design, and private-mould housings can also be evaluated for ODM projects. Customization starts with a confirmed battery specification or sample. Any requested certification or market-specific test must be identified by model and destination before production.

What Are the Common and Recommended Charger Ratings on This Page?

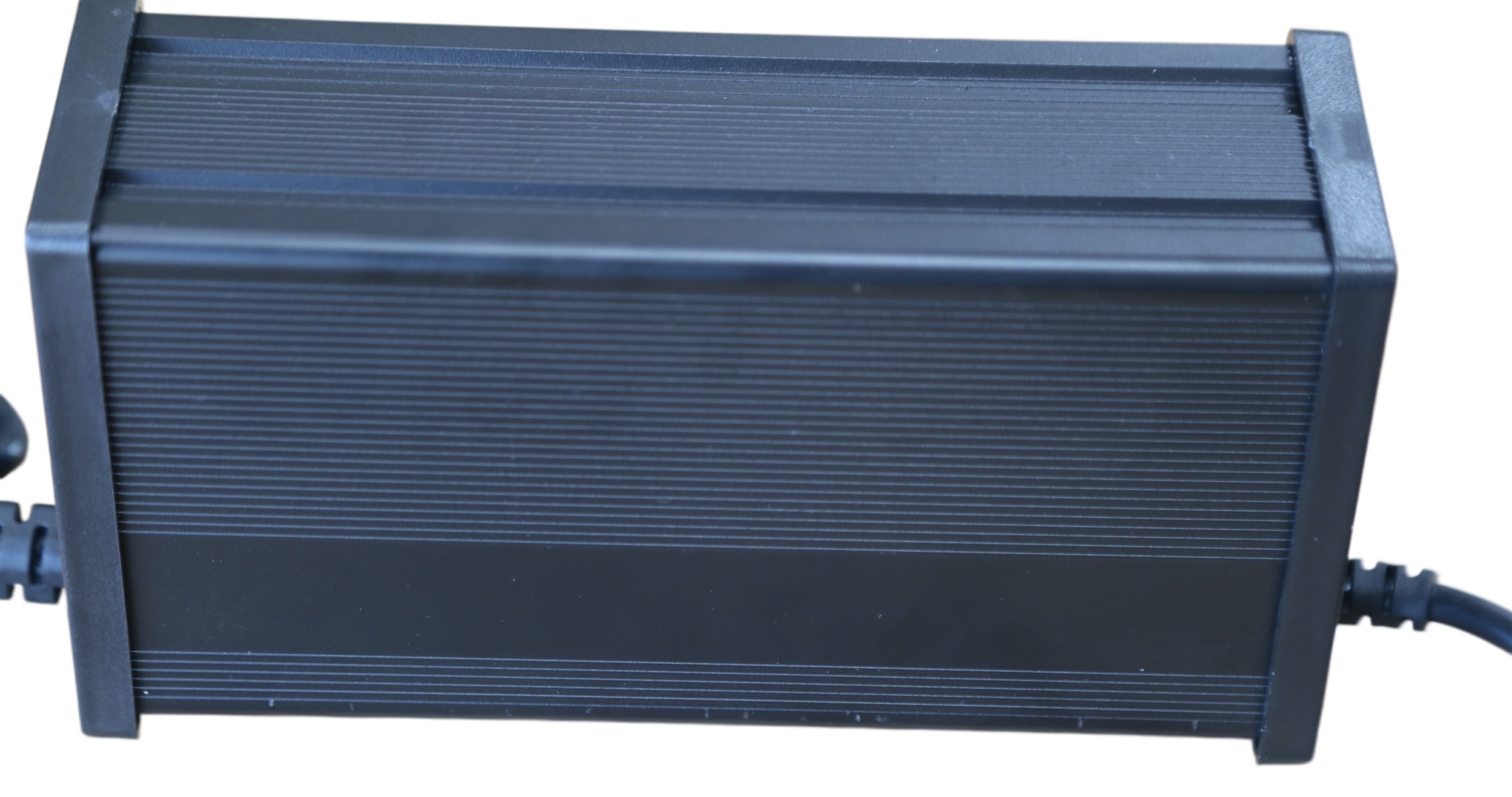

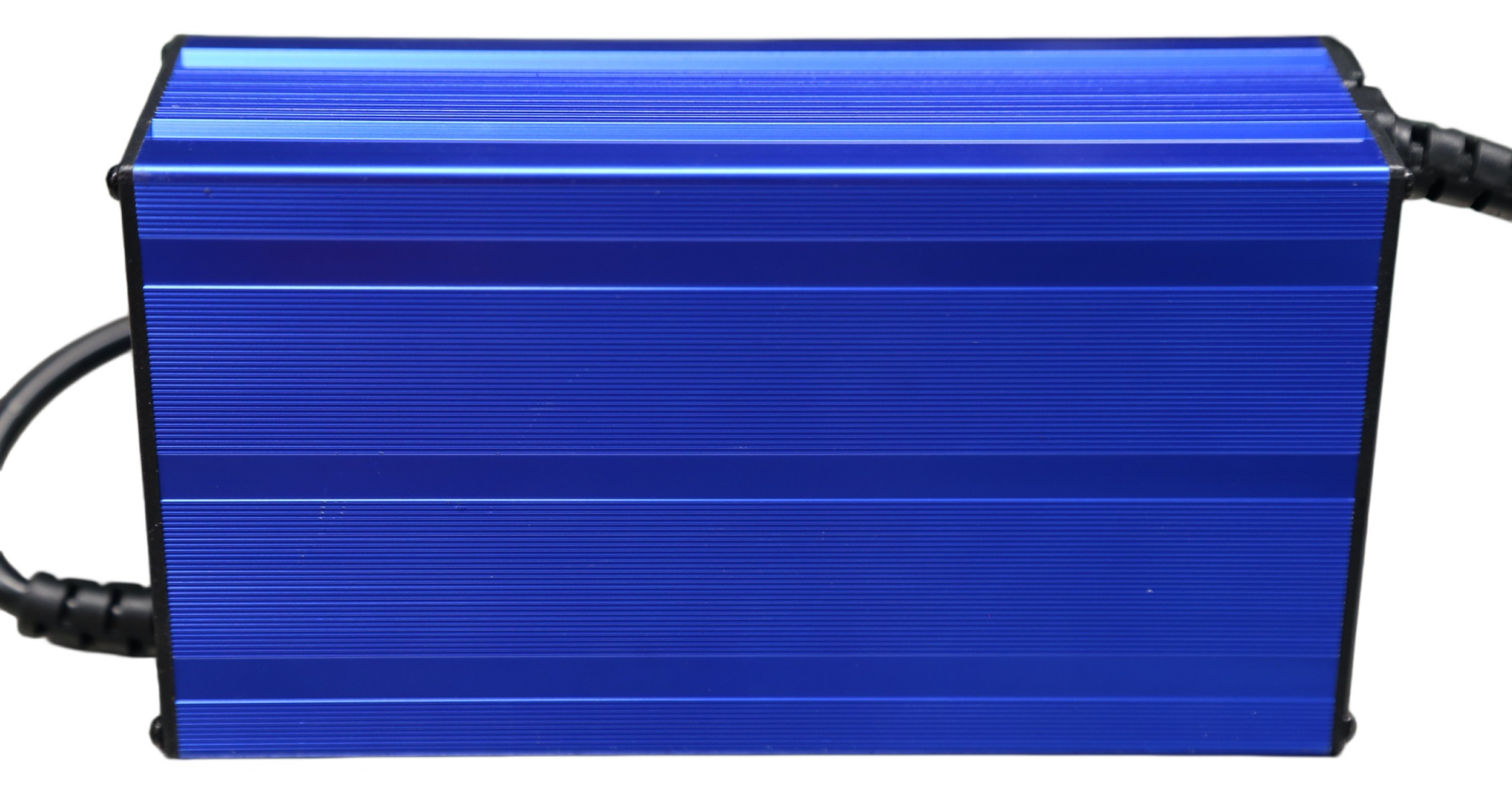

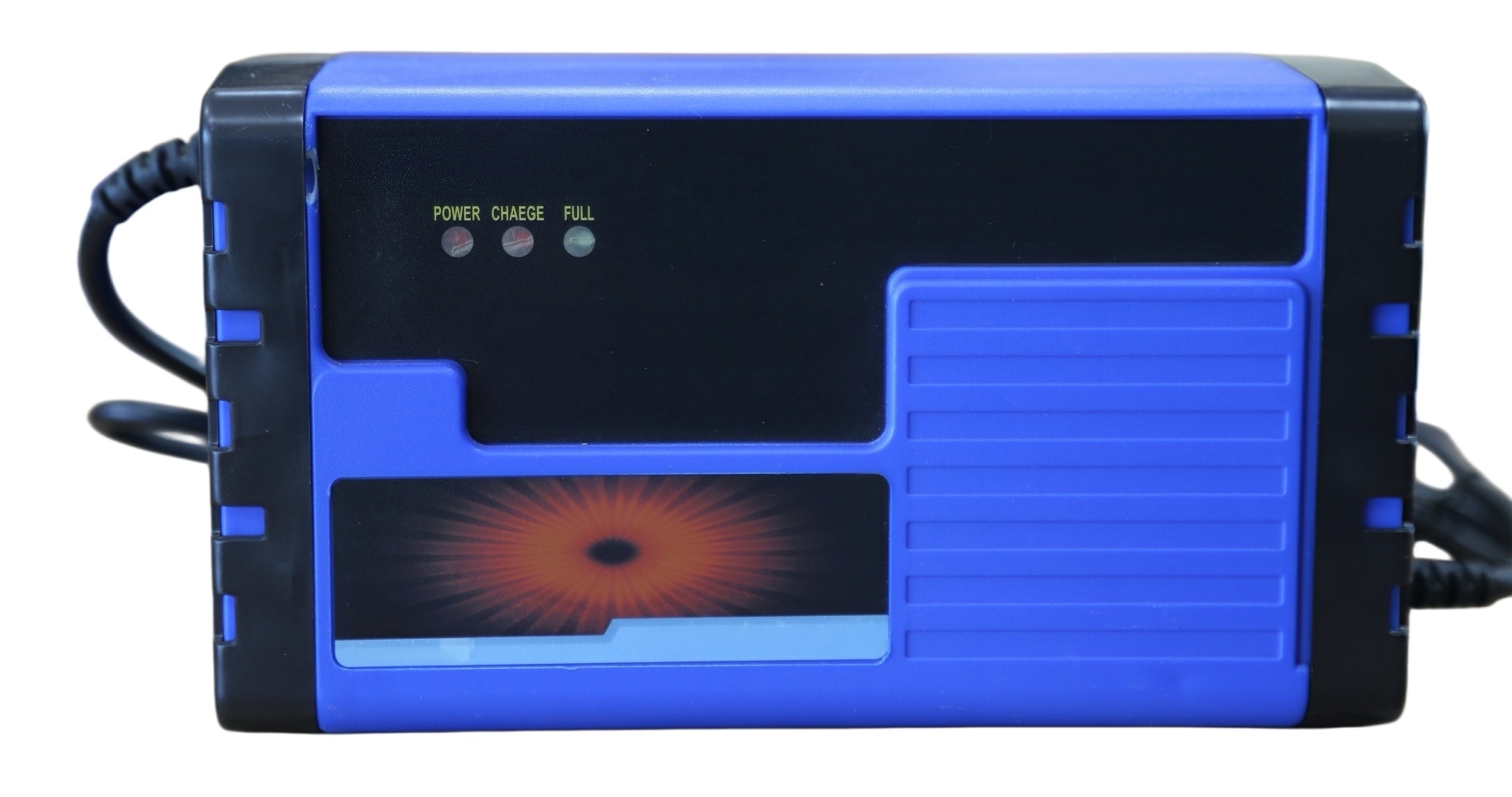

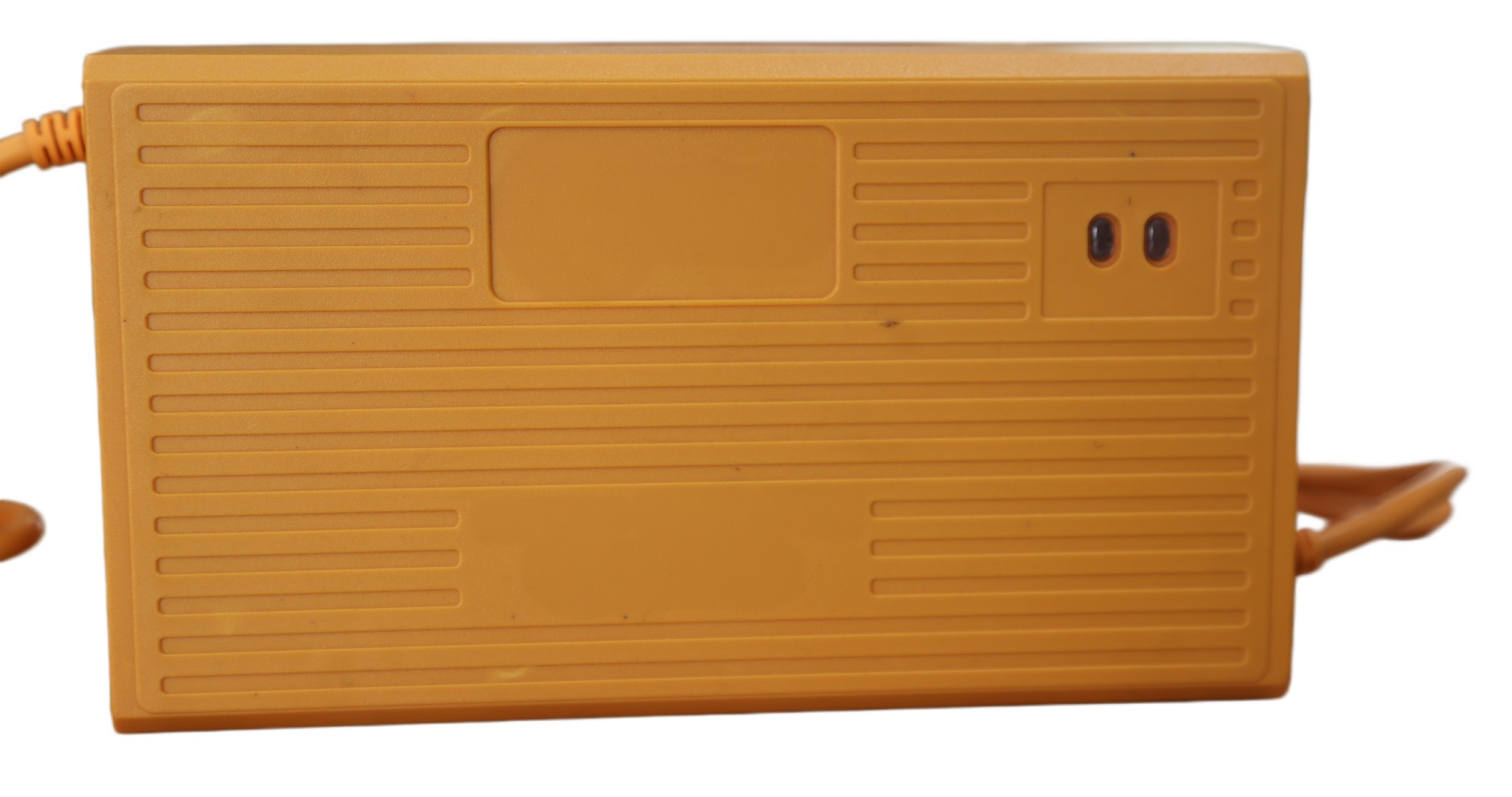

The four catalogue models all provide 10.0 +/- 0.2A charging current, but their batteries and output voltages differ. The 48V lead-acid model is recommended for selected 48V 70-100Ah packs with a catalogue output range of DC 48-59.2V. The 60V lead-acid model is recommended for selected 60V 70-100Ah packs with a catalogue output range of DC 60-74V. The 48V lithium model is recommended for selected 48V 50-80Ah packs requiring 54.6 +/- 0.2V output, while the 72V lithium model is recommended for selected 72V 50-80Ah packs requiring 84.0 +/- 0.2V output. These are reference matching ranges, not universal rules. Final selection must consider the actual battery design, BMS limit, desired charging time, and thermal conditions.

What Charger Structures Are Common for E-Rickshaw Projects?

Enclosed chargers with natural cooling are commonly used where output power and thermal conditions allow a fanless design. Aluminum housings and fan-cooled structures can provide additional thermal support for higher-power or demanding applications. Potted or sealed structures can be developed for projects exposed to dust or moisture, and open-frame, SKD, or CKD solutions can support qualified local assembly. The structure should be selected according to output power, installation space, airflow, ambient temperature, duty cycle, environmental exposure, serviceability, and target cost.

What Battery Information Is Required Before Selecting an E-Rickshaw Charger?

At minimum, the buyer should provide the battery chemistry, nominal voltage, required full-charge voltage, capacity in amp-hours, and the battery manufacturer's permitted charging current. For a lithium pack, Linjia also needs the cell configuration and BMS charging-current limit. A clear connector photo, polarity and pin definition, local AC voltage, plug type, expected operating temperature, charging frequency, and order quantity should also be supplied. If the battery label does not show the full-charge voltage or cell configuration, the battery or BMS supplier should confirm it. A 48V or 72V label alone is not enough to select a compatible charger.

What Housing and Cooling Systems Are Common for E-Rickshaw Chargers?

Plastic housings are widely used for compact chargers, while aluminum housings are often chosen where greater mechanical support or heat dissipation is required. Natural cooling reduces moving parts but needs adequate surface area and free airflow. Fan cooling increases airflow but adds noise and a component that must remain clean and functional. Potted designs improve resistance to dust and moisture but require careful thermal design and are less convenient to repair. Linjia selects the housing and cooling approach according to output power, ambient temperature, duty cycle, installation position, and project requirements.

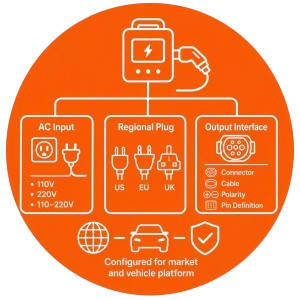

Which Plugs, Connectors, and Cable Options Can Be Customized?

Input options can include plugs for the destination market, while the DC output can be matched to the E-rickshaw or battery connector. Cable length, cable specification, connector housing, polarity, and pin assignment can also be configured. Because connectors that look identical may use different polarity or pin definitions, a photo alone may not be sufficient. For an OEM battery charger, Linjia recommends confirming the connector drawing, marked sample, or electrical definition before sample production and repeating the check before mass production.

Which Charging-Profile Parameters Can Be Customized?

Depending on the battery system and project, charging current, full-charge voltage, charging stages, transition or cut-off logic, timing control, indicator behavior, and selected protection functions can be reviewed. These parameters must be developed around the battery chemistry and management requirements rather than copied from a charger with the same nominal voltage. For lithium projects, the charger output and BMS charge limit must agree. For lead-acid projects, the charging stages and final voltage must match the battery type and intended maintenance behavior.

How Do the Four 10A Charger Models Differ, and Are They Interchangeable?

All four catalogue models provide 10.0 +/- 0.2A current, but they serve different battery systems. The 48V and 60V lead-acid models are recommended for selected 70-100Ah packs and have catalogue output ranges of DC 48-59.2V and DC 60-74V. The 48V and 72V lithium models are recommended for selected 50-80Ah packs and provide 54.6 +/- 0.2V and 84.0 +/- 0.2V output. They are not interchangeable. Even a battery carrying the same nominal-voltage label may use a different chemistry, series cell count, full-charge voltage, BMS limit, connector, or polarity. Each charger must be confirmed against the actual pack before use.

What Safety Protections Should an E-Rickshaw Battery Charger Include?

Protection requirements depend on the selected model and battery system. The catalogue 10A series lists soft start, reverse-connection protection, multi-stage timing protection, overtemperature protection, and short-circuit protection. Other projects may require overvoltage, overcurrent, input protection, or additional control logic. Every required function should be written into the approved specification rather than assumed from a general product description. Linjia also applies standardized electrical performance, high-voltage insulation, and full-load burn-in checks to help identify output, insulation, assembly, and early-life problems before shipment.

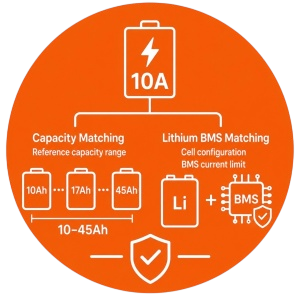

How Do the Charger and the Lithium Battery BMS Work Together?

For a lithium battery, the charger supplies the voltage and current defined in the approved charging profile, while the BMS monitors the pack and may limit or interrupt charging when cell voltage, current, temperature, or another condition exceeds its programmed range. The BMS does not correct an incompatible charger specification. If charger voltage is too high, current exceeds the permitted limit, or the connector pinout is wrong, the BMS may repeatedly cut off or the system may become unsafe. Buyers should provide the BMS charging-current limit, required full-charge voltage, connector definition, and any communication requirement before development. A conventional lead-acid pack follows a different charging system and should not be treated as a lithium BMS application.

What Input Voltage Is Suitable for Different E-Rickshaw Markets?

Linjia can configure AC 110V, AC 220V, or AC 110-220V input at 50-60Hz, together with the regional plug required by the destination. A single-voltage version may be suitable for a stable, defined market, while a wider input version can simplify distribution across more than one voltage region. Buyers should provide the country's nominal voltage, actual voltage fluctuation, frequency, plug standard, and any surge or grid-adaptation requirements. The approved input range must be confirmed on the product specification and label.

Can the Charger Be Used in High-Temperature, Dusty, or Voltage-Unstable Markets?

The catalogue 10A models list an operating range of -20 degrees C to +50 degrees C, but real suitability depends on airflow, duty cycle, enclosure, component configuration, and the actual environment. For markets with high heat, dust, moisture, voltage fluctuation, or long daily operating periods, Linjia can evaluate input tolerance, thermal margin, housing material, cooling, potting, cable, and protection requirements. These conditions should be disclosed before development. A charger should not be described as waterproof, high-temperature rated, or surge resistant unless the selected construction and validation support that claim.

How Long Does a 10A E-Rickshaw Charger Take to Charge a Battery?

Charging time cannot be calculated from the 10A rating alone. A basic estimate divides the amp-hours that must be replenished by the charging current, but actual time is longer because lead-acid charging includes later absorption or maintenance stages, while lithium charging may taper near full charge or be interrupted by the BMS. Battery capacity, starting state of charge, battery condition, temperature, charger profile, and BMS behavior all affect the result. Buyers should test the approved charger with the actual battery pack and target charging cycle before confirming a charging-time claim to end users.

What Affects the Service Life and Long-Term Reliability of an E-Rickshaw Charger?

There is no responsible fixed service-life figure for every charger and market. Actual life depends on component quality, electrical and thermal margin, input-voltage stability, ambient temperature, ventilation, charging frequency, battery condition, connector contact, and user handling. Excess heat or premature failure is more likely when the charger is mismatched, covered during operation, used in poor ventilation, exposed to unstable power, or connected through worn plugs and cables. For a B2B project, the approved component level, test plan, operating conditions, warranty terms, and expected field performance should be confirmed for the specific model.

How Should an E-Rickshaw Battery Charger Be Used and Maintained?

Use the charger only with the battery specification, connector, and polarity stated on its approved label or manual. Place it in a dry, ventilated area and do not cover the housing or block cooling openings during charging. Follow the model-specific connection and disconnection sequence, and do not open or modify the charger. Regularly inspect the plug, cable, connector, and housing for looseness, damage, discoloration, or abnormal heat. Stop using the charger if there is unusual odor, noise, repeated cut-off, excessive temperature, or visible damage, and have the battery and charger checked by qualified service personnel.
