Custom 36V Lithium Battery Charger Manufacturer in China

Frequently Asked Questions About 36V Lithium Battery Chargers

What Is the Difference Between a 36V NMC Lithium Battery Charger and a 36V Lead-Acid Battery Charger?

Both products may be described using a 36V battery category, but the battery chemistry, charging voltage, charging profile, and charge-termination requirements are different. The NMC lithium charger covered on this page is intended for compatible 10S lithium-ion packs requiring DC 42.0V output and CC/CV charging. A 36V lead-acid charger must instead follow the charging requirements of the specified lead-acid battery.

A lithium charger must also match the battery cell configuration, required full-charge voltage, permitted charging current, and BMS requirements. Lithium and lead-acid chargers are therefore not interchangeable simply because the packs are sold in a 36V category. The wrong charger may cause incomplete charging, BMS cutoff, excessive heat, battery damage, or a safety risk. Buyers should verify the battery label and datasheet before ordering.

In Which Applications Are 36V Lithium Battery Chargers Usually Used?

These chargers are intended for compatible 10S NMC lithium-ion battery packs in battery-powered equipment, where the battery specification requires DC 42.0V charging output. Equipment manufacturers and battery brands can request a charger matched to a new product, while importers, wholesalers, and distributors can source an approved replacement configuration for a defined battery model.

The equipment type alone does not determine compatibility. The battery manufacturer must specify a charging voltage compatible with DC 42.0V output, together with an approved current, BMS, connector, and polarity. A product labelled 36V may use a different battery chemistry or cell configuration. If these details are unknown, a sample or battery datasheet should be checked before production.

Does the 36V Lithium Battery Charger Support Customization for Equipment or Brand Requirements?

Yes. For equipment-manufacturer, battery-brand, importer, or distributor orders, Linjia can configure the AC input version, regional plug, output connector, connector polarity, pin definition, cable length, label, private model code, and branded packaging. These items are recorded in the approved specification before mass production.

For projects requiring more than external configuration, Linjia can also evaluate ODM development of the charging circuit, charge profile, housing structure, and private mould. The development scope, validation method, order quantity, and lead time are confirmed according to the actual project.

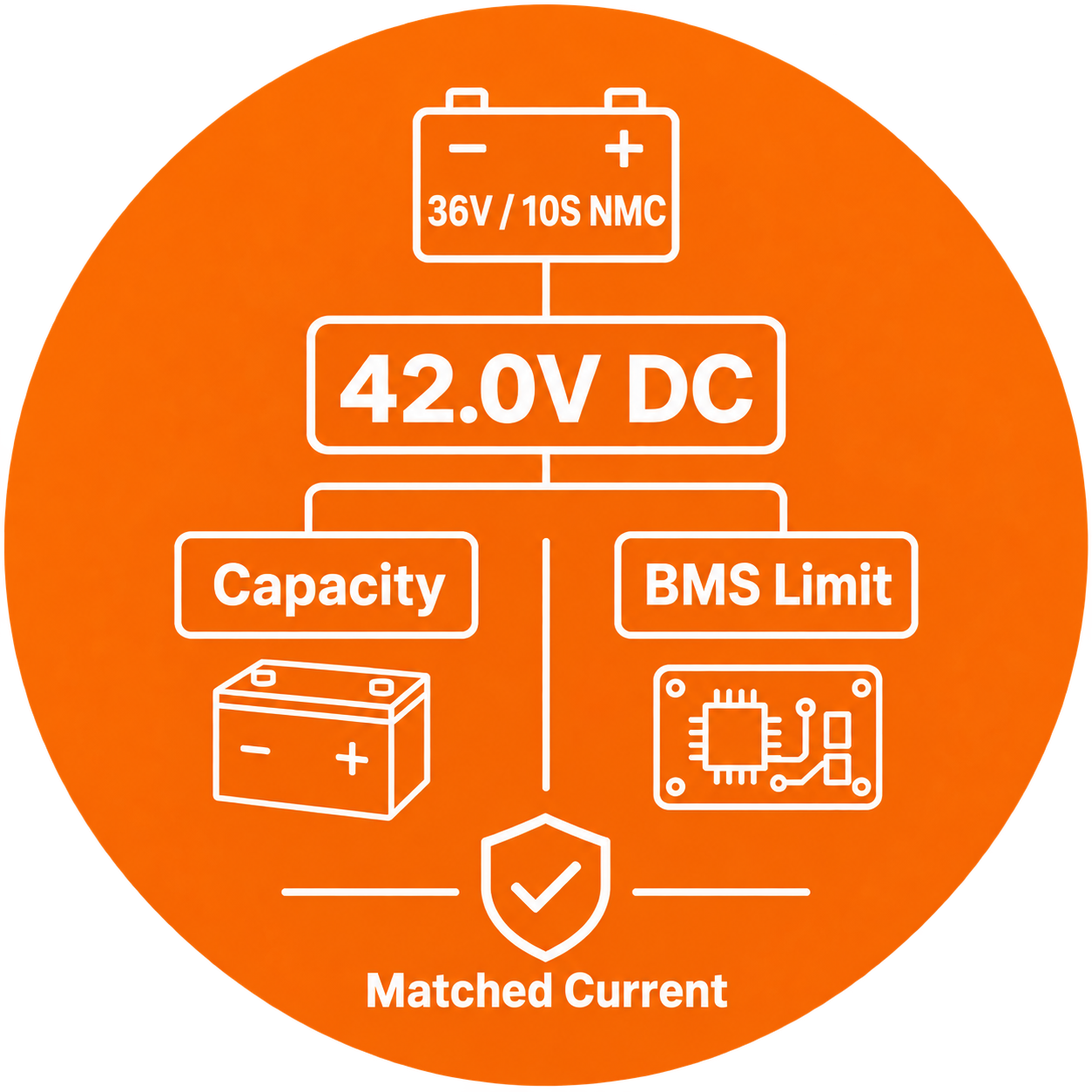

What Charging Currents and Battery Capacity Ranges Are Commonly Recommended?

Charging current and the applicable battery-capacity range are confirmed for each 36V NMC charger project. Buyers should provide battery capacity, the recommended and maximum charging currents, the BMS charging-current limit, and the required charging-time target so Linjia can evaluate a suitable current setting. The approved current is then recorded in the order specification and final model identification.

Battery capacity is one selection input rather than a substitute for the battery manufacturer's instructions. The final current must also be checked against cell chemistry, the BMS current limit, ambient temperature, and expected duty cycle. Choosing a higher current only to shorten charging time can increase heat or trigger the BMS if the battery is not designed for it.

What Are the Common Structures of a 36V Lithium Battery Charger?

The housing format for a 36V charger is selected after the required charging current, output power, AC connection, installation method, and thermal conditions are confirmed. Buyers should review the proposed enclosure, cable arrangement, dimensions, and weight with the sample rather than assume that all 36V lithium chargers share the same physical structure.

For OEM or ODM projects, Linjia can evaluate charger structures according to the actual application, installation, thermal, insulation, and service requirements. In-house housing injection moulding and private-mould development can support an approved project. Any non-standard structure and its validation requirements are confirmed separately before mass production.

What Battery Information Is Required Before Selecting a 36V Lithium Battery Charger?

The 36V designation on this page refers to a nominal-voltage product series; the specified charger output is DC 42.0V for compatible 10S NMC lithium-ion packs. Buyers should provide battery chemistry, cell series configuration, nominal voltage, required full-charge voltage, capacity in amp-hours, permitted charging current, BMS limits, and the battery manufacturer’s charging instructions.

Linjia should also receive a clear connector photo or physical sample, polarity and pin definitions, and details of the operating environment. DC 42.0V output is not suitable for every battery sold as 36V. LiFePO4 packs, lead-acid batteries, and lithium packs with different charging requirements must be assessed separately rather than treated as interchangeable with the 10S NMC configuration.

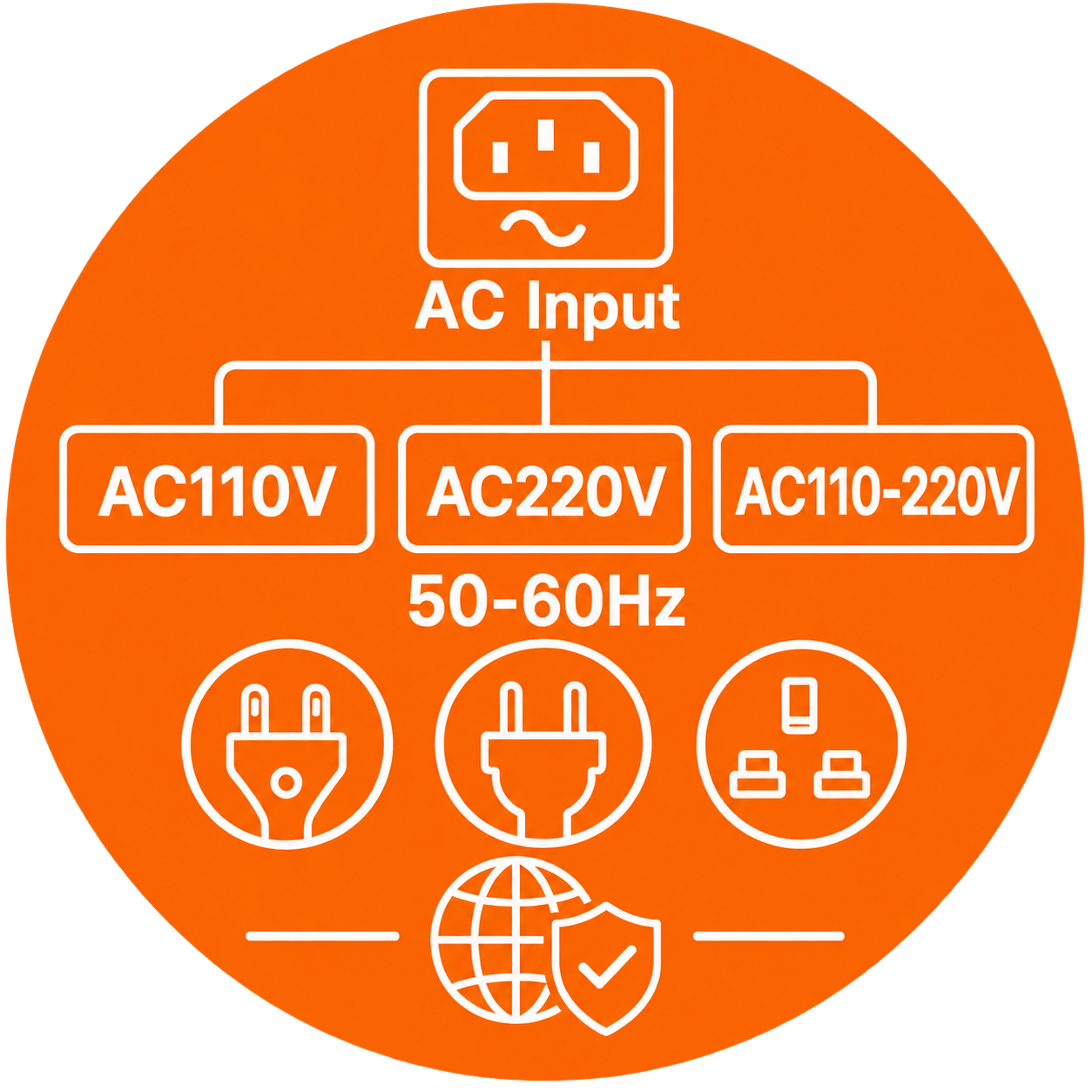

What AC Input Versions Are Available for Different Markets?

The product catalogue lists AC110V, AC220V, and AC110-220V input options at 50-60Hz. A fixed-input model can be selected for a defined market, while a wide-input version is more suitable when one approved charger specification must serve markets with different mains voltages.

The wall plug must also match the destination country and sales channel. Buyers should confirm the nominal grid voltage, frequency, plug type, and expected voltage fluctuation before approval. If the local grid is unstable, Linjia can evaluate the required input-voltage margin, protection functions, component configuration, and thermal design for the project.

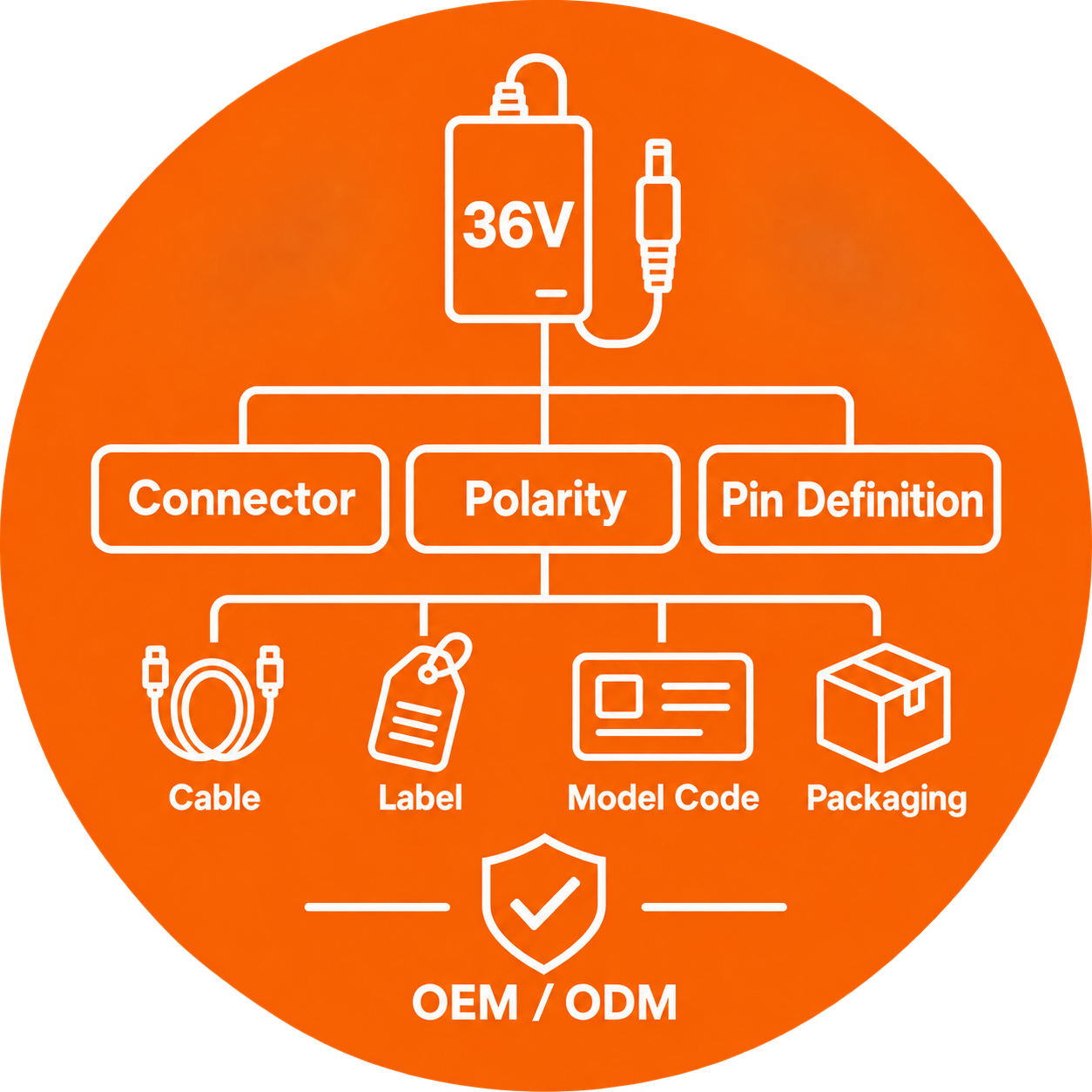

Which Plugs, Connectors, and Cables Can Be Configured?

Regional AC plugs and different DC output interfaces can be configured according to the order. To avoid an interface that fits mechanically but is wired incorrectly, buyers should provide a connector sample or clear dimensional photo together with the polarity, pin definition, cable length, and cable-rating requirements.

Connector confirmation is especially important when a distributor sells replacement chargers for several battery models. Visually similar connectors may use different positive and negative assignments. Linjia records the approved connector and wiring definition for production and verifies them during finished-product inspection.

Which OEM Branding and Packaging Options Are Supported?

OEM orders can use an approved customer logo, local-language label, private model code, rating-label layout, inner packaging, and outer-carton marks. The displayed electrical information must remain consistent with the confirmed charger specification and any applicable market requirements.

Branding artwork and packaging references should be approved before production. This allows importers, wholesalers, and battery brands to keep model identification consistent across purchasing, warehousing, sales, and after-sales service, reducing confusion between chargers that may look similar but have different electrical outputs or connectors.

What Is the Difference Between Lower- and Higher-Current 36V Charger Configurations?

With the same approved 42.0V output, a higher charging current can reduce the constant-current stage when the battery and BMS are designed to accept it. A lower approved current places a lower charging-current load on the battery but may require more time. Linjia confirms the available current setting after reviewing the battery specifications, BMS limit, thermal requirements, and intended duty cycle.

A larger current is not automatically a better choice. Actual charging time also depends on the battery's state of charge, charge profile, BMS behaviour, temperature, battery age, and losses. The battery manufacturer's maximum and recommended charging currents should take priority over a simple capacity-based estimate.

Does the 36V Lithium Battery Charger Include Electrical Protection?

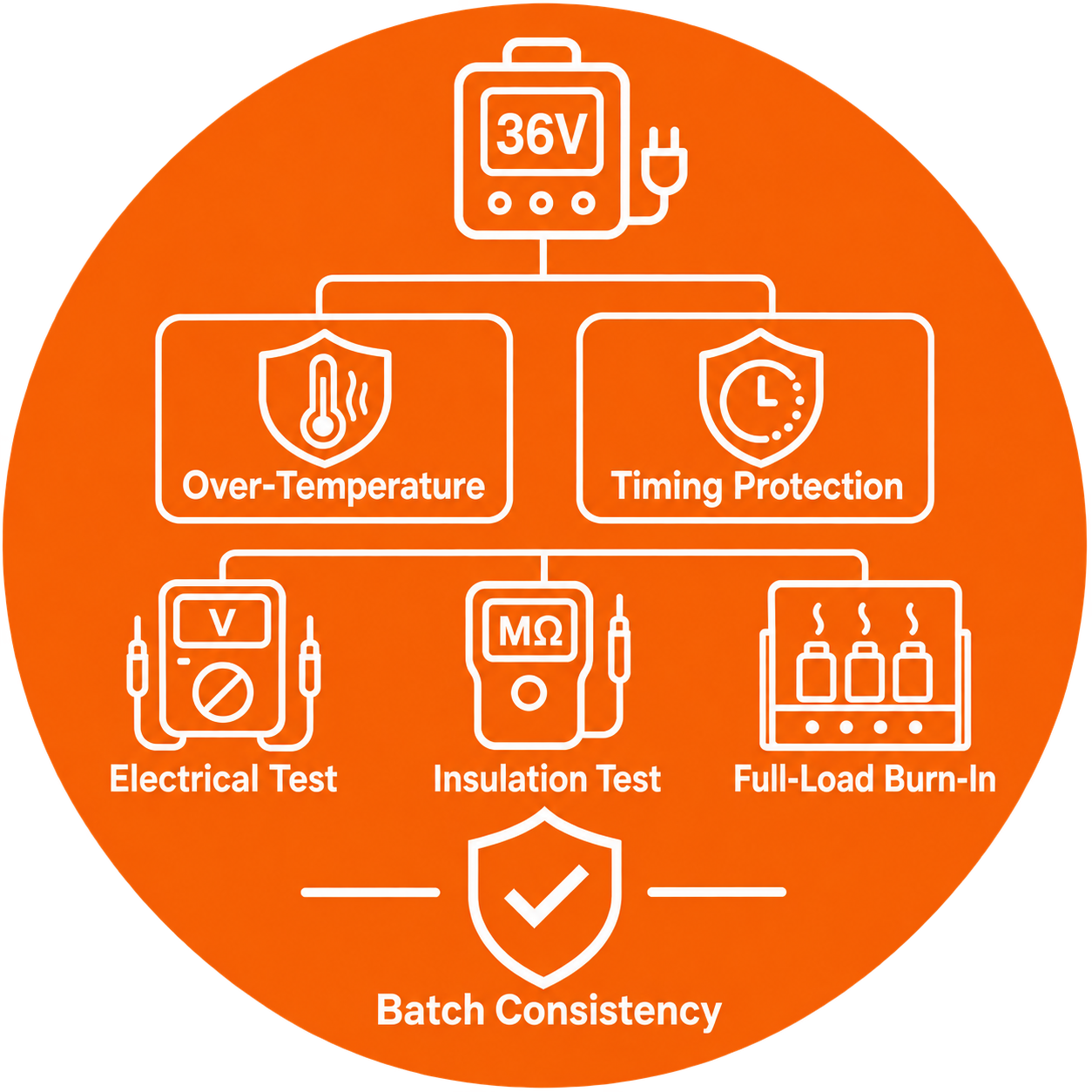

The NMC charger specification lists over-temperature protection and multiple timing protection, together with CC/CV charging. The protection settings and any additional requested functions must be defined and verified for the approved 36V configuration, particularly when an OEM or ODM project changes the circuit, connector, cable, or charging logic. Protection functions cannot make an electrically mismatched charger suitable for the wrong battery.

How Is Charging Safety Controlled Before Shipment?

Within Linjia’s manufacturing system, chargers are controlled through incoming inspection, semi-finished testing, finished electrical testing, dielectric withstand and insulation testing, full-load burn-in, and final order verification. Connector, polarity, labels, and packaging are checked against approved references. Certification or test-document requirements are confirmed by model and destination market rather than assumed to apply to every configuration.

How Long Does It Take to Charge a 36V Lithium Battery Pack?

A basic capacity-to-current calculation provides only an initial estimate for a compatible 36V-series, 10S NMC battery pack. Dividing the capacity to be replenished in amp-hours by the approved charger current gives a theoretical baseline. Actual charging also depends on the starting state of charge, current taper during the constant-voltage stage, BMS behaviour, battery temperature, and battery condition.

Linjia therefore does not assign one universal charging time to all 36V NMC battery packs. Buyers should provide the battery datasheet and required charging-time target so the current can be evaluated. The selected current must remain within the battery manufacturer’s limits, even when a sales channel requests faster charging.

How Can Incorrect Connection or Model Mixing Be Prevented?

The most reliable method is to control the specification before production. Linjia confirms the battery model, charger model, output voltage, current, connector, polarity, pin definition, cable, and label as one approved configuration. A physical connector sample or confirmed drawing is preferable when several similar interfaces are used.

Private model codes, distinct rating labels, colour references, and separate packaging can also help warehouses and distributors identify the correct charger. During mass production, these references are checked together so that an electrically correct charger is not paired with the wrong connector, label, or carton.

What Is the Expected Service Life of a 36V Lithium Battery Charger?

It is not responsible to state one fixed service-life figure for every charger and market. Actual life depends on component configuration, input-voltage quality, ambient temperature, ventilation, charging duration, duty cycle, cable condition, connector contact resistance, and whether the charger is consistently operated within its approved ratings.

For B2B projects, buyers should define the operating environment and expected usage pattern during specification review. Appropriate component margins, thermal design, protection requirements, and full-load burn-in can then be evaluated. Keeping the charger dry, uncovered, well ventilated, and connected only to the approved battery also helps reduce avoidable failures.

Can the Charger Develop Excessive Heat, Cable Damage, or Loose Connector Contacts During Long-Term Use?

Any charger can develop these problems if it is mismatched, repeatedly overloaded, used in excessive ambient heat, connected through an undersized cable, or paired with a worn or high-resistance connector. A battery fault or incorrect BMS setting can also keep the charger under abnormal load.

The risk can be reduced by confirming the electrical specification and cable rating, using an appropriate connector, checking thermal performance under full load, and controlling connector assembly during production. Users should stop using a charger if the housing, cable, or connector becomes abnormally hot, discoloured, loose, damaged, or produces an unusual smell.

How Should a 36V Lithium Battery Charger Be Used and Maintained?

Use the charger only with the battery model and charging specification for which it was approved. Before connection, check the charger label, connector fit, polarity, cable condition, and battery condition. Follow the supplied connection sequence and operating instructions; do not force a connector or substitute a visually similar charger.

Operate the charger in a dry, ventilated location and do not cover the housing during charging. Keep it away from liquids, combustible material, direct heat, and heavy dust unless the specific design is rated for those conditions. Disconnect and inspect any unit showing damage or abnormal heat. Clean the exterior only after power is removed, using a soft dry cloth rather than solvents or abrasive cleaners.
